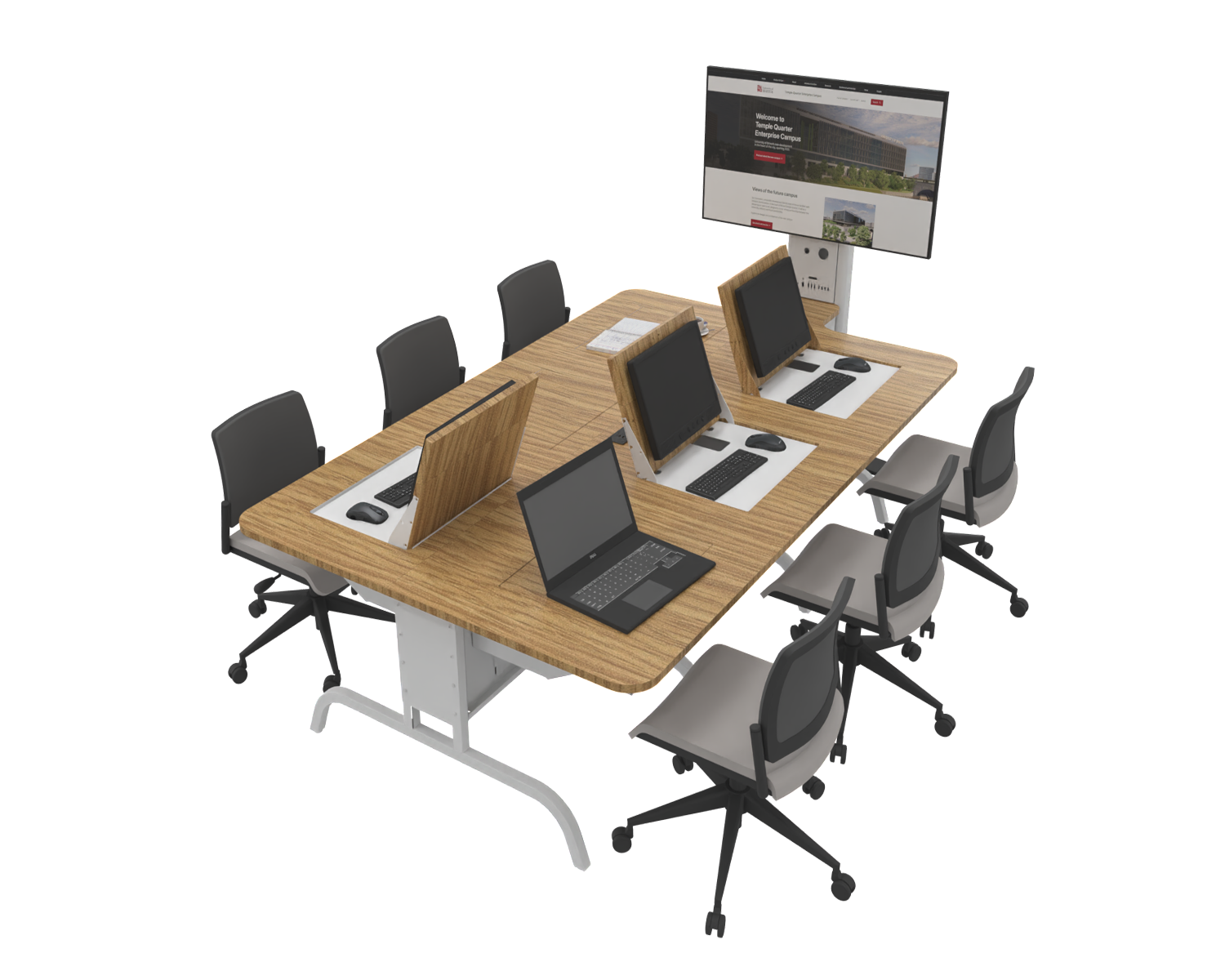

Evoke
Evoke
EXX/XX-(VMX)-N30-XIncluded:
– Secure screen mount w/ push button lock (JUPITER01-PBL – 400×400 VESA or JUPITER02-PBL – 700×400 VESA)
– Universal 27” screen mount for flip-top pods (100×100 VESA / AIO PCs)
– Versatile panel conceals screen, keyboard & mouse
– Choice of four flip-top module sizes
– Choice of two worktop widths
– Customise each table with any combination of Round, Tapered or Square end panel styles
– Choice of standard paint, worktop & edge banding finishes
– Worktops are supplied with a thickness of 25mm

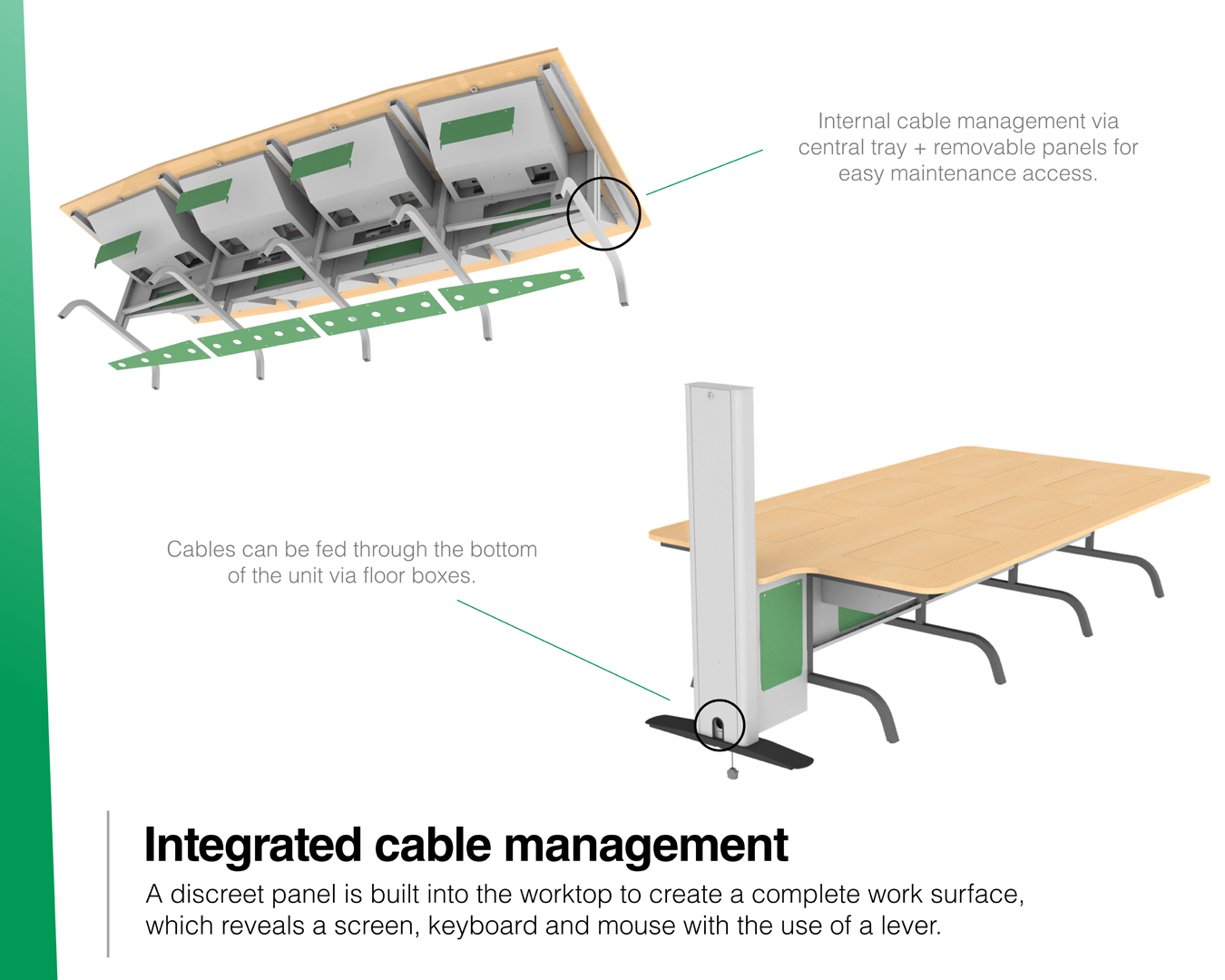

– Integrated cable ports (can be supplied without)
| Size A – 820mm(W) seat space | |||
| Seats | Length (S) | Length (T) | Length (R) |
| 4 | 2220mm | 2240mm | 2610mm |
| 6 | 3050mm | 3070mm | 3430mm |
| 8 | 3870mm | 3890mm | 4250mm |
| Size A (MAX pod zize = 4) Depth – 1630mm(D) | |||
| Size B – 920mm(W) seat space | |||
| Seats | Length (S) | Length (T) | Length (R) |
| 4 | 2720mm | 2450mm | 2820mm |
| 6 | 3640mm | 3370mm | 3740mm |
| 8 | 4560mm | 4290mm | 4660mm |
| Size B (MAX pod size = 5) Depth – 1650mm(D) | |||
