Helical Screw Pile Foundations for Retaining Walls and Pile Caps
Retaining walls and pile cap structures demand foundations that handle sustained lateral pressure, variable ground conditions, and long-term load transfer – all while meeting strict engineering and compliance standards. Our helical screw pile foundations provide an engineered solution that installs faster and with less disruption than traditional concrete pile foundations.
Why helical screw piles are specified for retaining walls and pile caps
Traditional retaining wall foundations typically involve deep excavation, reinforced concrete, and extended curing periods. This creates programme delays, generates substantial waste, and can be impractical on sites with restricted access or environmental constraints.

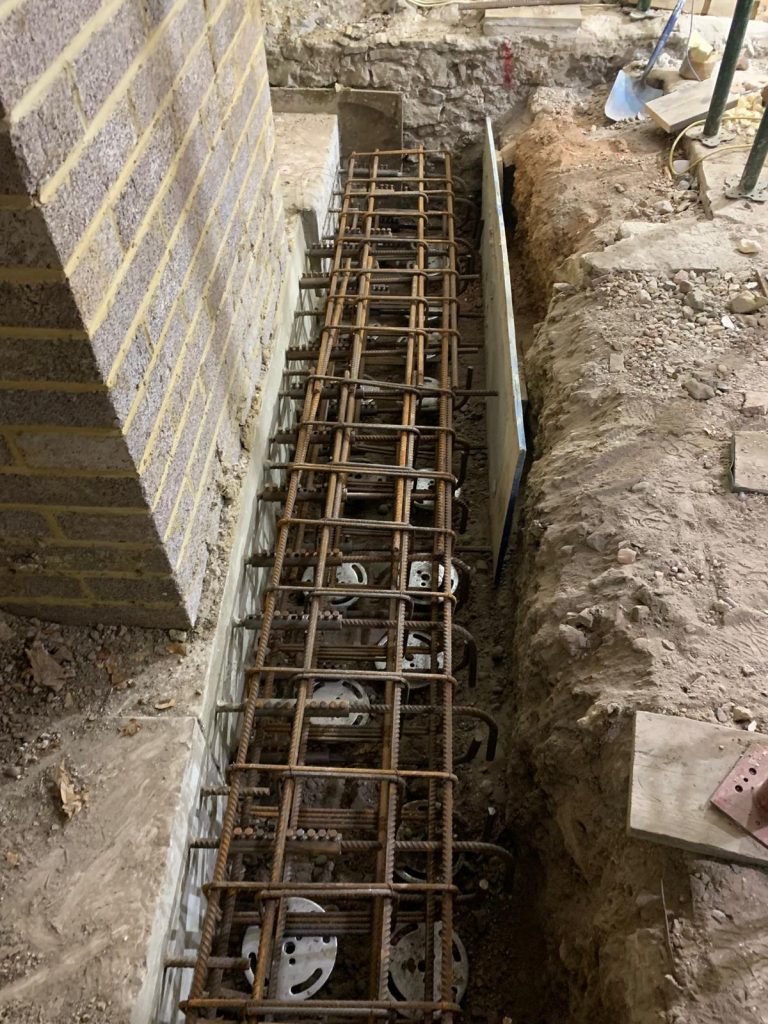

Helical screw piles provide a direct load path into stable ground strata without excavation. Combined with engineered pile caps, they create a foundation system that transfers both vertical and lateral loads efficiently – with every pile verified through torque monitoring during installation.
The benefits of screw pile foundations for retaining structures
Handles Complex Load Patterns
Helical screw piles perform in compression, tension, and shear – handling the combined vertical and lateral loads generated by retaining structures.Installed in Challenging Ground
Our piles reach deeper, more stable soil strata, performing reliably in weak, variable, and waterlogged ground conditions where traditional foundations struggle.No Excavation Required
No spoil to remove, no skips, no waste. Installation produces minimal vibration and noise – important for residential and urban sites.Certified Load Data for Every Pile
Every pile is installed using excavators from 1.5t to 20t with calibrated torque monitoring. Comprehensive torque pile logs record installation torque, depth, pile identification, and performance data.Pile Cap Design and Fabrication
We provide site-specific pile design, including engineered pile caps, ensuring efficient load transfer from the retaining structure into the helical screw piles below.Built to Recognised Standards
All helical screw piles are manufactured to EN 1090-1 (CE/UKCA), EN 1090-2 (execution class EXC2 or EXC3), ISO 3834 (welding quality), and EN ISO 1461 (hot-dip galvanising). Design life of up to 100 years.
Applications for retaining wall and pile cap foundations

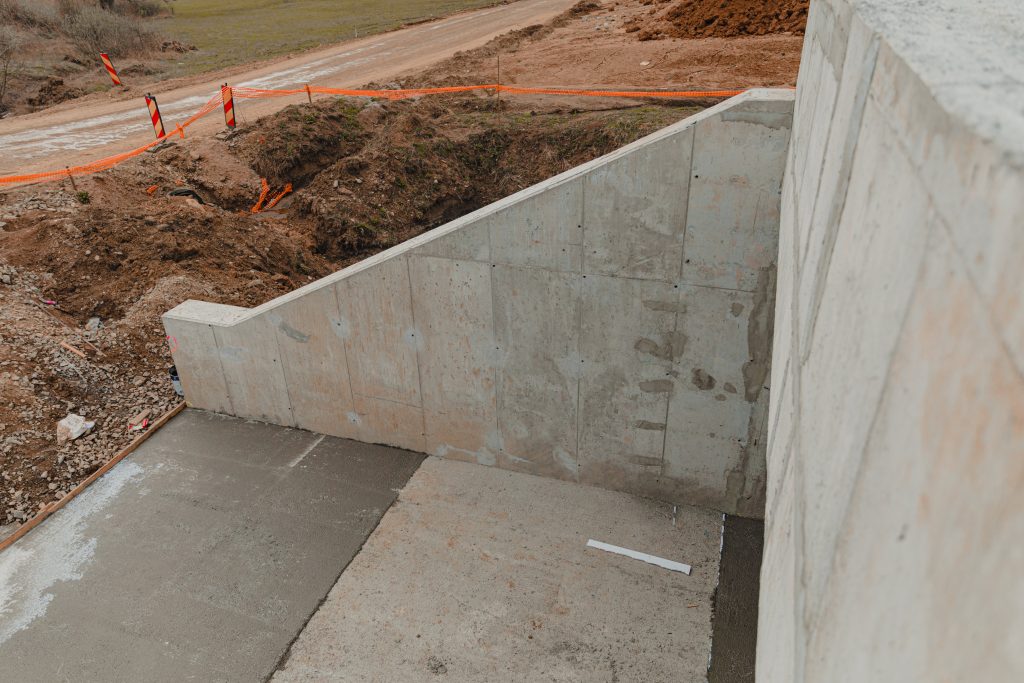

- Reinforced earth and gravity retaining walls
- Steel king post with pile foundations
- Pile caps for concentrated point loads
- Slope stabilisation and embankment retention
- Bridge abutment foundations
- Basement and below-ground retaining structures
Our service for retaining wall and pile cap projects
We offer a complete turnkey service from design through to certified installation:
- Site-specific helical screw pile design including pile caps
- GPS mark out and GPR (ground penetration radar)
- Professional installation with calibrated torque monitoring
- Comprehensive torque pile log and monitoring report for every pile
- Certified load capacity reports generated through deep foundation software
- Steel fabrication and sub bases
- Stock sizes from 76R to 140R, with bespoke manufacturing available
- Static load-bearing testing where required
We work directly with structural engineers, civil engineers, and contractors to deliver the documentation and compliance evidence your retaining wall project requires.
Frequently asked questions
-
Yes. Our helical screw piles perform in compression, tension, and shear, handling the combined vertical and lateral loads generated by retaining structures. Piles can also be installed at angles to optimise resistance to lateral pressure.
-
Yes. We provide site-specific pile design, including engineered pile caps, along with steel fabrication and sub bases. Our design service ensures efficient load transfer from your retaining structure into the helical screw piles.
-
Yes. Our helical screw piles reach deeper, more stable soil strata, performing reliably in waterlogged, soft, and variable ground conditions where traditional foundations would require extensive ground improvement works.
-
Yes. We work directly with your structural engineer to develop an optimised pile and pile cap design that meets the project specification. We provide the installation data and certified reports – your engineer retains full design authority.
