Quick & Simple
Easy to install yourself in a matter of minutes, enabling you to get your project out of the ground straight away without any waiting, any time of the year.
Less mess, less cost
A quick and clean alternative to messy concrete, no digging, no waste, no costly skips. Save money on the total cost of installing foundations.
Designed to last
Our ground screws are fully galvanised to protect against rusting. For added peace of mind, they are CE certified with our 20-year product guarantee and are BS EN 1461:2009 compliant.
Immediately load bearable
Suitable for a wide range of structures, our ground screws are immediately load bearing, so as soon as they are installed you can start building.
Permanent or temporary structures
Suitable for permanent or temporary structures and easily removable with no lasting pollutants left behind
Environmentally friendly
Reduced CO2 from pouring concrete. Helps protect habitats and prevent damage to tree root systems
No Heavy Equipment
Purchase your hand ratchet tool for quick and easy installation due to no heavy equipment required
Lightweight & Compact
Using ground screws eliminates any access issues - Our ground screws, bracket systems and tools can all be carried by hand.
Reduced Disruption
The DIY approach minimises disruptions to your property, as it often involves less noise, debris, and disturbance compared to traditional foundation construction.

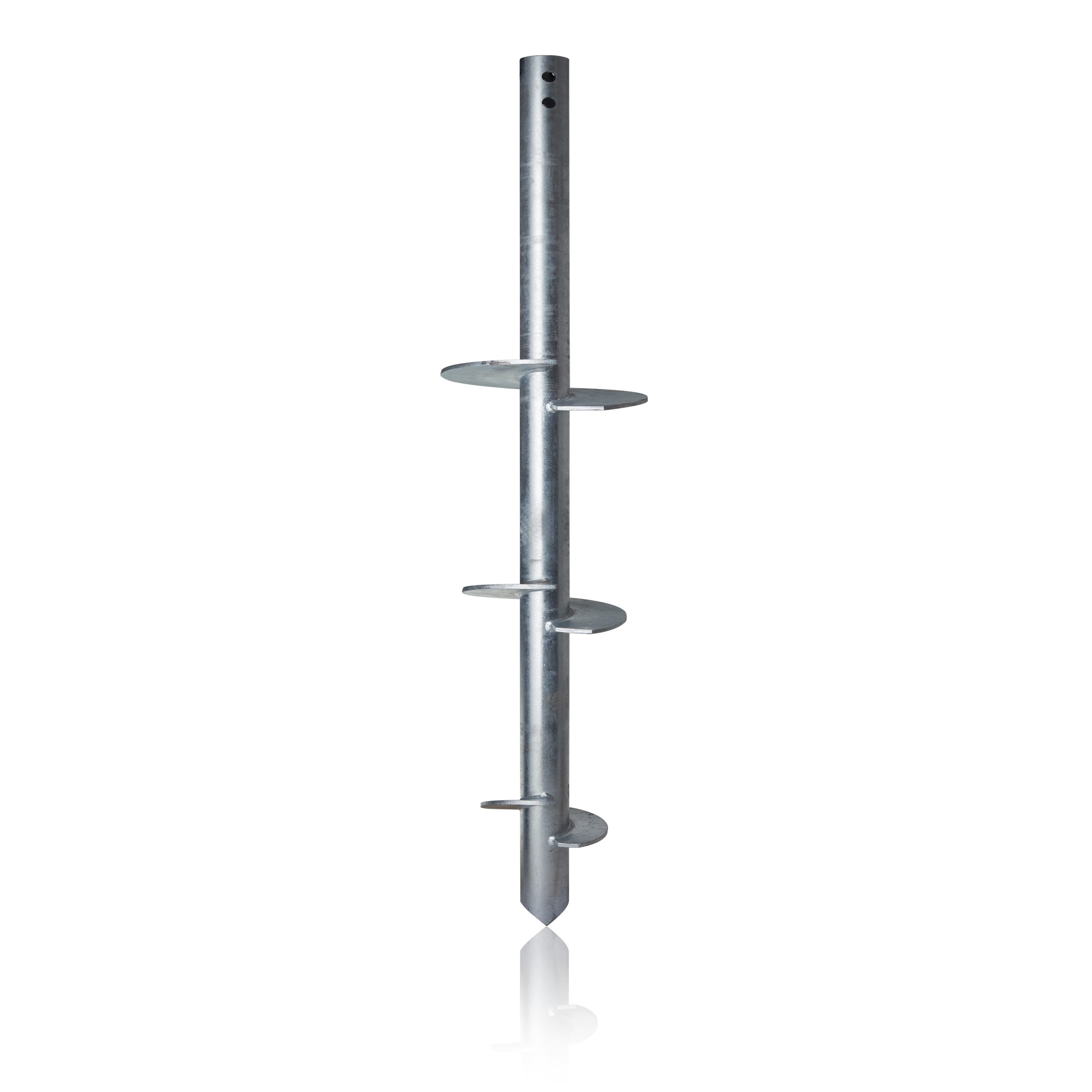

114R Helical Screw Pile
114R Helical Screw Pile
Price: POA
To purchase our Helical Screw Piles, please contact us so we can provide the correct pile design and specification suited to your project.
Enquire nowDescription
Introducing the 114R — a workhorse in our screw pile range, built for reliable embedment and confident performance under medium to heavy structural loads. Its bespoke helix configuration offers excellent bearing capacity across varied soil types, with a choice of helix sizes and configurations to match your ground conditions and project demands.
Every 114R pile is installed with our excavator-mounted driving unit, suited to a wide range of excavator classes, and can be fitted with an optional gimbal mount for tight-clearance sites where headroom is limited.
Our installers work with live torque monitoring on every drive, giving you an accurate, on-site read of pile capacity as it happens — no guesswork, no delays. Well suited to heavier infrastructure applications such as BESS, bridges, gantries, pile taps, and similar requirements. Get in touch for a quote.
Pile Section Specifications
| Size | Shaft Dia. | Shaft Wall Thickness | Section Length | Helix Qty | Helical Plate Thickness | Extension Sections | Coating Finish |
|---|---|---|---|---|---|---|---|
| 114R | 114mm | 12.5mm+ | Bespoke | Bespoke | 12.5mm+ | Bespoke | EN ISO 1461 – Hot-dip galvanising |
Pile Head Specifications
| Pile Size | Plate Size | Plate Thickness | Fixing | Coating Finish |
|---|---|---|---|---|
| 114R | Bespoke | Bespoke | Bespoke | EN ISO 1461 – Hot-dip galvanising |
Manufacturing Standards
| Standard | Covers |
|---|---|
| EN 10025 | Structural steel specification |
| EN 10210 / EN 10219 | Structural hollow sections |
| ISO 3834 | Welding quality management |
| EN ISO 1461 | Hot-dip galvanising |
| EN 1090-1 | CE/UKCA conformity declaration |
| EN 1090-2 | Execution class EXC2 or EXC3 as applicable |
Key advantages for engineers and contractors
- No vibration
- High load achieve with smaller rigs and machines
- Reliable performance in weak and variable ground conditions
- Safe and practical for use on contaminated land
- Design life of up to 120 years
- Fully certified load data for every pile installed
- Not weather-dependent – installation possible in conditions that would delay a concrete pour
- Suitable for confined and restricted-access sites
- Can be installed at a range of angles to suit design requirements
